MSC20V

Monitors and control equipment

One-to-one LCD fan operation panel

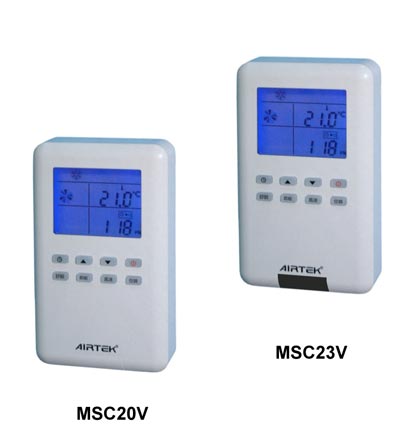

MSC20V series one to one LCD fan coil unit control panel is a special-purpose field operation man-machine interface.

Description

MSC20S and MSC20V LCD control panel are a special-purpose field operation man-machine interface. It has a large-scale graphic LCD with back light. It may facilitate the user to examine, setting, change and confirm each kind of control parameter value e.g. the indoor temperature value, temperature setting, air condition mode, fan speed, off timer and alarm messages.

Features

  • 16 bit microprocessor, high precise operation.
  • Two-wire communication network, Easy for wiring.
  • Large-scale LCD is good for display temperature value, setting value,
    fan speed, air conditioning mode and abnormal state.
  • LCD with the back light illumination for night operation.
  • Selectable air condition running mode: automatic, cooling, heating
    and fan.
  • Selectable fan speed: automatic, high, medium and low speed.
  • Energy saving function, periodically start/stop for energy saving.
  • Comfortable function, temperature setback while sleeping.
  • Has the 0~24 hour power off timer, for override function.
  • Flash memory design, maintains memory for more than ten years without power.
  • Included self wakeup function (Watch Dog) when software is down.
  • Key lock function to prevent unauthorized operation.



View more detailed specifications (PDF). View PDF
