DSCU842B

BACnet Field Control Device

BACnet Application Specific Controller

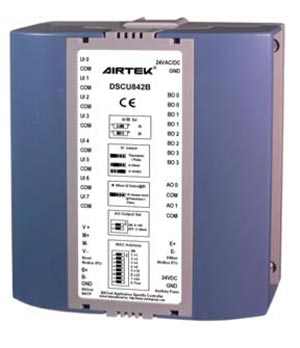

DSCU842B is a standalone BACnet B-ASC class programmable controller. It is designed for monitor and control building electromechanical device, large AHU, clean room, fume hood, large-scale end device control.

Description

DSCU842B is a standalone BACnet B-ASC class programmable controller. It is designed for monitor and control building electromechanical device, large AHU, clean room, fume hood, large-scale end device control. It uses 32-bit microprocessor core, transmission rate up to 76,800 bps, transmission distance up to 1,200 meter. DSCU842B has 8 Universal Inputs(UI), 4 Binary Outputs(BO) and 2 Analog Outputs(AO).

In addition it has an MSnet port can connect an external LCD control panel to make user operation and control easily at job site. DSCU842B conforms to international BACnet MS/TP communication protocol and fully compatible with any BACnet system. It is absolutely the best product for your building.

Features

  • Conforms to ASHRAE and ISO16484-1 defined BACnet ASC standard communication protocol, compatible with BACnet system.
  • An MS/TP(Master-Slave/Token-Passing) communication interface connect to upper layer global controller.
  • An MSnet communication interface can connect a MST20V, MST20S, DSP20U control panel or a MODBUS RTU device.
  • Universal Input (UI) has 12-bit resolution, accept dry contact, pulse, 3K or 10KΩ NTC thermistor, 0~5VDC, 0~10VDC, 0~20mA or 4~20mA input signal.
  • Binary Output (BO) has a 5,000Vrms optical coupling isolator, 8A/250VAC/SPST relay (Relay), Status Indicator design.
  • Analog Output (AO) has 12-bit resolution, can be DIP switch and software selected as 0~10VDC or 2~10VDC output signal.
  • User’s control program can be downloaded, edited and saved in flash memory of the controller.
  • Carry out calculations such as proportional, integral, differential, floating, logic, arithmetic and etc.
  • 100 Binary Value(BV) and 100 Analog Value(AV) points, the analog value adopts high precision floating-point calculation.
  • Priority control array by 16 for all BO, AO and BV.
  • Provide power failure backup function for all AI/BO/AO/BV/AV values keep in FRAM for at least 10 years.

View more detailed specifications (PDF). View PDF
